Measurement principle:
Using a benchmark ruler device, accurately and quickly find the geometric centerline of the vehicle to be tested, and use it as the measurement benchmark. Using fully imported CCD measurement technology, detect various positioning angles of the wheel bridge. Provide a fast and accurate wheel axle positioning method for truck and bus workshops, tire service centers, and commercial vehicle maintenance enterprises.
Product advantages:
1. Using the geometric centerline of the frame as the measurement reference, the mathematical model is more reasonable;
2. Fully imported digital CCD sensor measurement technology, stable measurement, high accuracy;
3. Fully imported tilt angle sensor, 100% electronic level, stable measurement, high accuracy;
4. The sensor is equipped with a liquid crystal display screen, which can display the front beam, outward tilt, and battery level,
5. Intelligent charging and management system, equipped with 5600mAh high-capacity lithium battery;
6. Adopting 2.4GHz Bluetooth wireless transmission technology to ensure good communication connection and avoid external interference;
7. The measurement sensor is synchronized with the computer detection software for convenient data viewing and storage;
8. Wide measurement range, capable of detecting ultra-low chassis vehicles, suitable for a wide range of vehicle models;
9. Specialized fixtures for commercial vehicles, with tight fit and high measurement accuracy:
10. Full computer measurement according to the process, voice prompts, and one machine for centralized testing;
11. Remote control function of sensors, enabling remote operation of computers;
12. Self diagnostic function of sensor black box;
Measurement parameters:
| measurement items | measurement range | measurement accuracy |
| Bridge Parallelism | ±10° | ±0.02° |
| Total Toe | ±20° | ±0.04° |
| Single Toe | ±10° | ±0.02° |
| Camber | ±10° | ±0.02° |
| Caster | ±20° | ±0.04° |
| Dip Angel | ±20° | ±0.04° |
| Thrust Angel | ±2° | ±0.02° |
| Include Angel | ±30° | ±0.02° |
Product Tags:
|
|

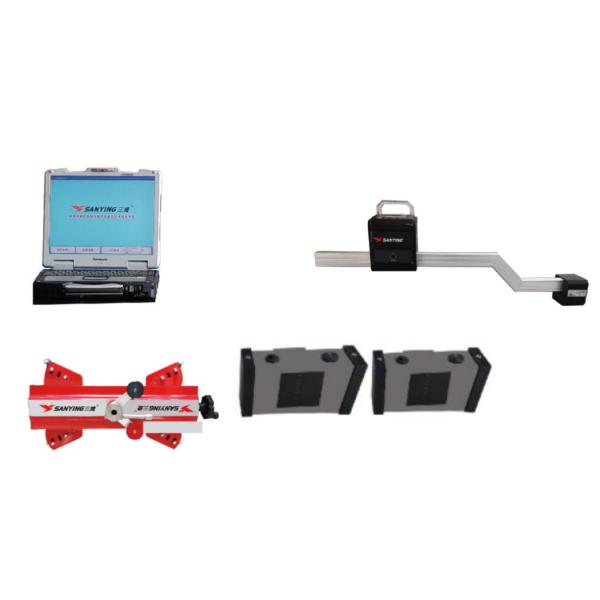

CCD Truck Wheel Alignment Machine Con pantalla LCD Bus Wheel Alignment Equipment Heavy Duty Alignment Machine Images
|
